Product Details
- Place of Origin: Shenzhen
- Brand Name: ESCAM

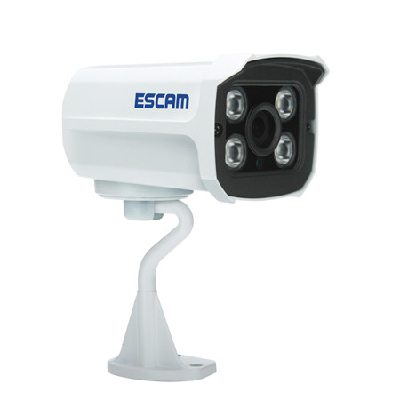

- Model Number: ESCAM Brick QD300
| Model | QD300 | |
| Camera | ||
| Image Sensor | 1/4” 1Megapixel progressive scan CMOS | |
| Effective Pixels | 1280(H)x720(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3(4)~1/10000 | |
| Min. Illumination | Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | 15m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC/ HLC/ DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3.6mm | |
| Max Aperture | F1.8 | |
| Focus Control | Manual | |
| Angle of View | H: 70° | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264 | |
| Resolution | 720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 720P(1 ~ 25fps) |
| Sub Stream | D1/CIF(1 ~ 25fps) | |
| Bit Rate | H.264: 16K ~ 4096Kbps | |
| Audio | ||
| Compression | N/A | |
| Interface | N/A | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 10 users | |
| Smart Phone | iPhone, iPad, Android | |
| P2P | iPhone, Android Mobile App | |
| Auxiliary Interface | ||
| Memory Slot | N/A | |
| RS485 | N/A | |
| Alarm | N/A | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V 1A | |
| POE | N/A | |
| Power Consumption | <4W | |
| Working Environment | -30°C~ 60°C, Less than 95%RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | N/A | |
| Dimensions | 107mm x68mm x60mm | |
| Weight | 0.25Kg | |
| Package Dimensions | 150mm x90mm x85mm | |
| Package Weight | 0.36Kg | |
| Approvals | CE FCC RoHS | |
- Place of Origin: Shenzhen
- Brand Name: ESCAM
- Model Number: ESCAM Brick QD300
