Product Details
- Place of Origin: Shenzhen
- Brand Name: ESCAM
- Model Number: ESCAM QF001

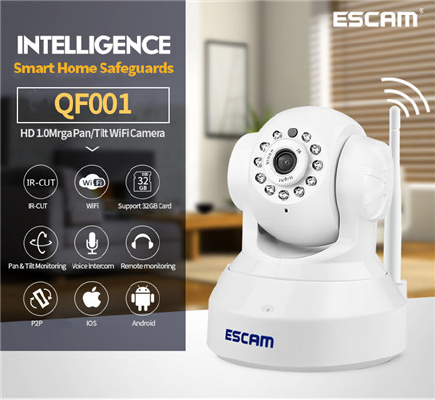

| Model ： ESCAM QF001 | ||
| Features | System security | Account, password management |
| View by phone | Support HD pic IOS, Android mobile view (iOS 4.3、Android OS 2.3 above) | |
| Local Storage | support up to 32G TF card ，24-hour loop recording. | |
| Monitor Advantage | Support PC computer monitoring, smartphone multi-pic view. | |
| UID Technology | UID scan technology applied, easy to operate, and highly confidential. | |
| Video coding | Multi stream：720P/25fps D1/25fps CIF/25fps | |
| Bit Rate | CBR/VBR, output bit rate range：48～3072kbps | |
| Video | Compression Format | H.264 baseline profile |
| Frame rate | NTSC:30fps/PAL:25fps（720p） | |
| Resolution | 720P(1280*720),D1(704*576), CIF(352*288) | |
| Picture Adjustment | Contrast, Brightness, Saturation are adjustable. | |
| Sensor | 1/4 720p Progressive CMOS sensor | |
| Minimum illumination | Color: 0. 1Lux, B/W: 0.01Lux | |
| SNR | ≥39dB | |
| IR control | Auto | |
| Electronic shutter | 1/50s(1/60s）-1/100, 000s | |
| CMOS | support AWB, AGC, BLC | |
| Lens/viewing angle | 3.6mm@F1.４/62.2˚ | |
| Night Vision | Night vision | Dual IR-CUT Filter auto switch, 11pcs 850nmΦ5mm LED,10m IR distance |
| Audio | Compression | G.711A |
| Input | 1 Channel Line in -48dB Microphone | |
| Output | 1 Channel Buit in speaker(8Ω1W) | |
| P/T | P/T | Pan:355°,Tilt:120° |
| Network | network interface | 10Base-T/100Base-TX Ethernet interface |
| Network Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P,etc. | |
| Online visitor | Support 4 online visitors simutaneoursly | |
| IP address | Dynamic IP and static IP address | |
| WIFI | WIFI 802.11 b/g/n | |
| Others | housing material | engineering plastics |
| Application environment | Indoor | |
| Rated Voltage | DC5±0.3V | |
| Temperature | -10~50 °C | |
| Power consumption | rated power：3.5Ｗ(IR opening )/maximum power：7W(P/T working ) | |
| Package size | 195x150x120mm (L×W×H) | |
| Weight | Gross Weight ：480g（Note: in kind prevail） | |
| Accessories | Power adapter, user manual, mounting bracket, screws. | |
| Alarm | Motion Detection | Support motion detecting |
| Certificate | Certificate | CE RoHS |
| Only for reference | ||
- Place of Origin: Shenzhen
- Brand Name: ESCAM
- Model Number: ESCAM QF001
